MIGHTY ZAP[マイティ ザップ] 図面・動画

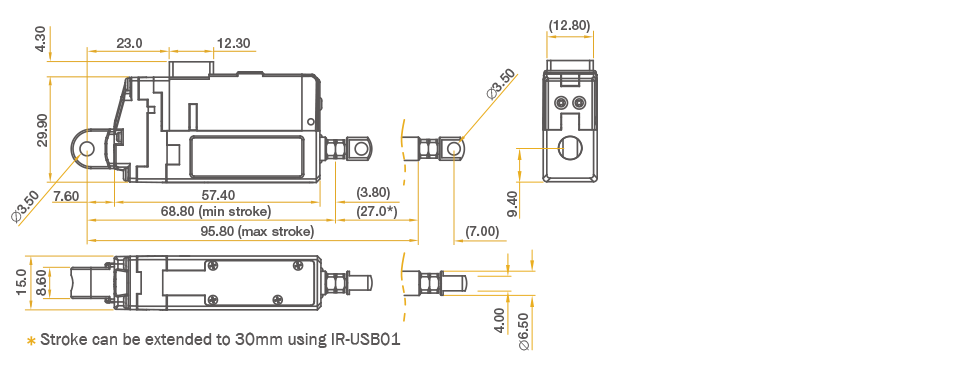

27mmストローク Version （Economical 26mm）寸法
| Download File |
| Data Sheet L12-XXPT-3 (12V, 12~100N, TTL/PWM, 27mm Stroke) |
 |
| Data Sheet L12-XXF-3 (12V, 12~100N, RS-485, 27mm Stroke) |
|
| [mightyZAP Economical] 29mm(26mm) stroke version 2D DXF Drawings |
 |
| [mightyZAP Economical] 29mm(26mm) stroke version 3D STP Drawings |
 |
| [mightyZAP Premium] 30mm(27mm) stroke Version 2D DXF Drawings |
|
| [mightyZAP Premium] 30mm(27mm) stroke Version 3D STP Drawings |
|

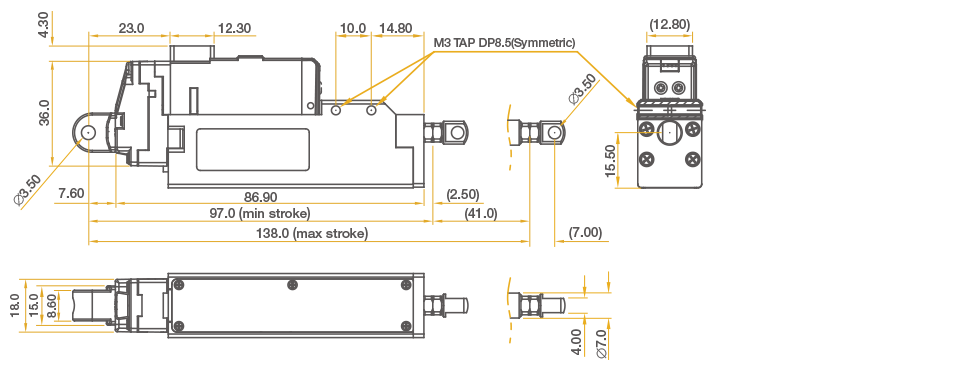

41mmストローク Version 寸法
| Download File |
| Data Sheet L12-XXPT-4 (12V, 17~78N, TTL/PWM, 41mm Stroke) |
|
| Data Sheet L12-XXF-4 (12V, 17~78N, RS-485, 41mm Stroke) |
|
| [mightyZAP Premium] 41mm stroke Version 2D DXF Drawings |
|
| [mightyZAP Premium] 41mm stroke Version 3D STP Drawings |
|

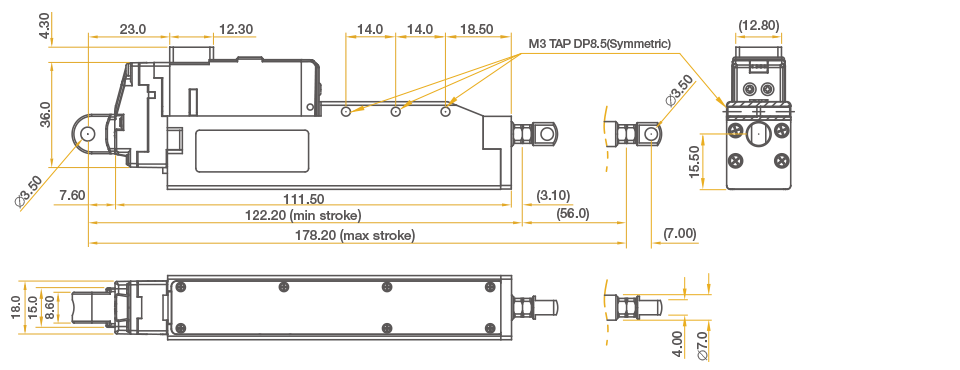

56mmストローク Version 寸法
| Download File |
| Data Sheet L12-XXPT-6 (12V, 17~78N, TTL/PWM, 56mm Stroke) |
|
| Data Sheet L12-XXF-6 (12V, 17~78N, RS-485, 56mm Stroke) |
|
| [mightyZAP Premium] 56mm stroke Version 2D DXF Drawings |
|
| [mightyZAP Premium] 56mm stroke Version 3D STP Drawings |
|

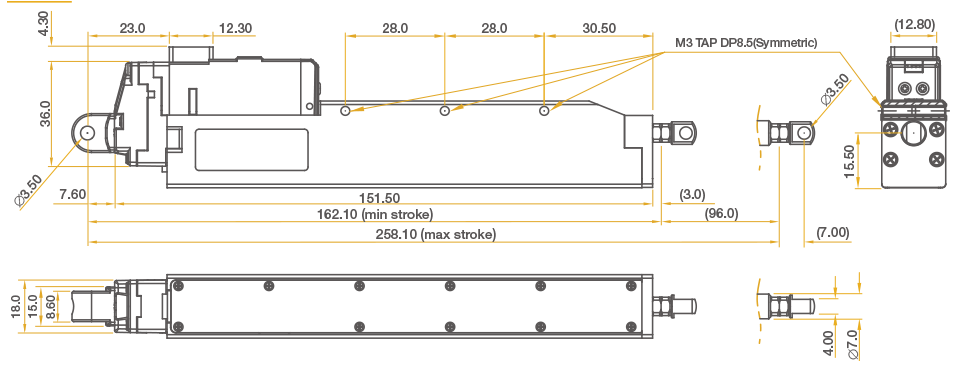

96mmストローク Version 寸法
| Download File |
| Data Sheet L12-XXPT-10 (12V, 17~31N, TTL/PWM, 96mm Stroke) |
|
| Data Sheet L12-XXF-10 (12V, 17~31N, RS-485, 96mm Stroke) |
|
| [mightyZAP Premium] 96mm stroke Version 2D DXF Drawings |
|
| [mightyZAP Premium] 96mm stroke Version 3D STP Drawings |
|
